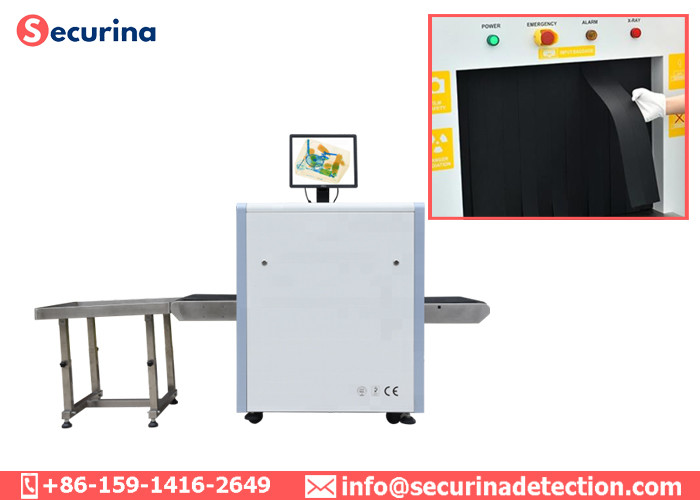

Security X Ray Detection Equipment , X Ray Airport Scanner 500mm×300mm Tunnel Size

Security Equipment X Ray Baggage Scanner with 500mm×300mm Tunnel Size


X Ray Baggage Scanner Advantages:

1. Automatic built in test and self diagnosis

2. Uninterruptable power supply (UPS)

3. Threat alert and material classification

4. Energy saving design

5. baggage counter

X Ray Baggage Scanner Image Process :

1. Image Enhancement: 1-32times enlargement continuity, negative,general enhancement,etc

2. Image Recall: All preceding images recallable, retrieva

3. High Density Region Alarm: Impenetrable region alarm and highlight,

    for possible concealing of threats and contrabands

4. Threat Image Projection: Inserting fictional, but realistic images of threat items into

    baggage during screening operation, for maintenance of vigilance, as well as training and

    assessment of image identification capability

5. Image Archive: Up to 100,000 images stored automatically, enable transferring to USB disk, and

    converting to JPG

X Ray Baggage Scanner Operating Environment​:

Operating temperature: 0℃-40℃

Operating Humidity: 10%-95% (non-condensing)

Storage Temperature: -20℃to 60℃

Storage Humidity: 5%-95% (non-condensing)

Operation Power: 220VAC (±15%)  50±3Hz (Optional: 100VAC,110VAC,120VAC,200VAC)

Power Consumption: 1.0KW (max), 0.7KW (working)

X Ray Baggage Scanner Technical Parameter:

X Ray Baggage Scanner other Specifications:


X ray Dose per inspection: <0.1.25μSv

Wire Resolution: 38 AWG typical

Spatial resolution Level: dia1.3mm,Vertical: dia1.6mm

Penetration: 2-4mm steel

Penetration Resolution: Guarantee 32AWG

Film Safety: Guarantee ASA/ISO1600 Film

X-ray Leakage: <2.0 μSv/h (at a distance of 5cm From external housing)

Cooling / Duty Cycle: Oil Cooling /100%

Detect PCB board: UK brand Sensortech

Extension Rollers: customize size length

UPS: 15mins, 30mins, 60mins etc, optional

X-ray Generator:

Anode Voltage: 80kv

Anode power: 0.35mA

Generate angle: 80 degree upward

Brand: Made in China

Generate direct: from bottom to top

Industrial Metal Detector Conveyor Product Pictures:

baggage x ray scanner

cargo security scanning machine

Security X Ray Detection Equipment , X Ray Airport Scanner 500mm×300mm Tunnel Size Images
