Mobile Under Car Surveillance Scanner UVSS System with Weather-proof
UVSS System Description:
Under vehicle surveillance system mainly adopt to inspect the beneath part of a variety of vehicles.
It can quickly and accurately identify threats/ contraband/ smuggling of persons hiding at the bottom.
UVSS greatly improved vehicle safety inspection speed and accuracy, reduce investment in human resources.
UVSS System Technical Parameters:
| Vertical resolution of the image | 5000*2048 pixels |
| Check the width viewing angle | < 4 meters |
| Speed of vehicle | < 30km/h with ALPR,< 70km/h without ALPR |
| Effective Field of View(FOV) | Less than 170° |
| Auxiliary light | 100W |
| Weight capacity | <20T |
| Water-proof grade | IP68 |
| Scanning device weight | 24KG |
| Scanning device volume | 450mm×400mm×88mm |
| Communication interface | RS232/RS422 |
| Operating Temperature | -10℃ to 55℃ |
| Storage temperature | -40℃ to +75℃ |
| Speed of vehicle | < 30km/h with ALPR(Automatic Licence Plate Recognition)
70km/h without ALPR(Automatic Licence Plate Recognition) |
UVSS System System Host:
Brand: Grantech (UFO6377H-SP1-953)
CPU: Intel® Core(TM) 2 Duo CPU; P8600@2.4GHz or higher
Memory:2G( optional 4G)
Graphics:Inter(R) Gen 5.0 Integrated Graphics Engine
Hard Disk:SATA2 Hard Disk 500G
Dual LAN (At least one Intel Gigabit)
USB2.0 (Up to 4 pieces)
Monitor: 22inch LCD, resolution up to 1920*1080
Operating voltage: 110-240V, 50/60Hz
UVSS System Packaging& Delivery:
1. Packaging: According to Standard Export Packing or as per customers' requirements
2. Delivery: Express/ Air/ Sea/ under the requirements of customer
3. Taxes & duties: International customers are responsible for all duties and taxes,
please contact your local authority for questions related to the amount of duties or taxes
you will be responsible for.
FAQ:
1. What are your main products?
A: Besides the hand held security detector, our main products are walk through security detector,
conveying food metal detector, underground metal detector and X-ray baggage scanner.
2. How do you ensure the quality of machine before delivery?
A: Machines are tested for their performances and sensitivity in different using scenarios
by final quality control teams before delivery. An average test may take up to 2-3 days in accordance with
the specifications of the machines. Moreover, our component providers run additional test procedures
for their products on our machines.
3. How to order?
A: Firstly let us know which equipment you want, provide us the model NO./name or your requirements.
Secondly we will quote you according to your requirements and your quantity.
Thirdly confirm and pay us.
Lastly We arrange the production and ship it to you after finish.

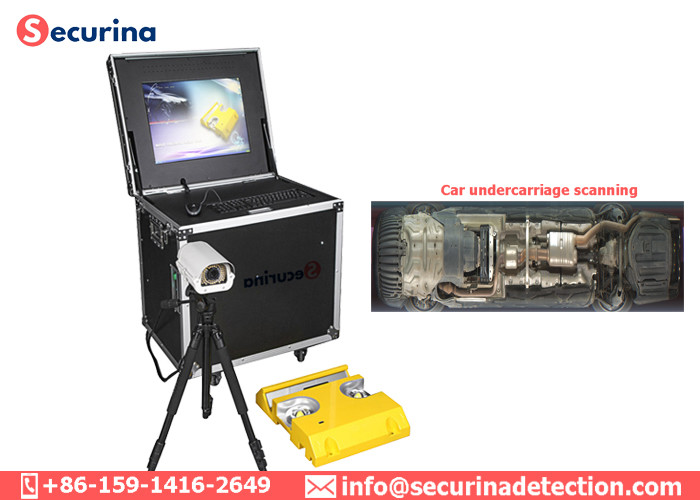

UVSS System Product Pictures:
Product Tags:
|
|
Mobile Under Vehicle Monitoring System IP 68 Waterproof Function Images
|
